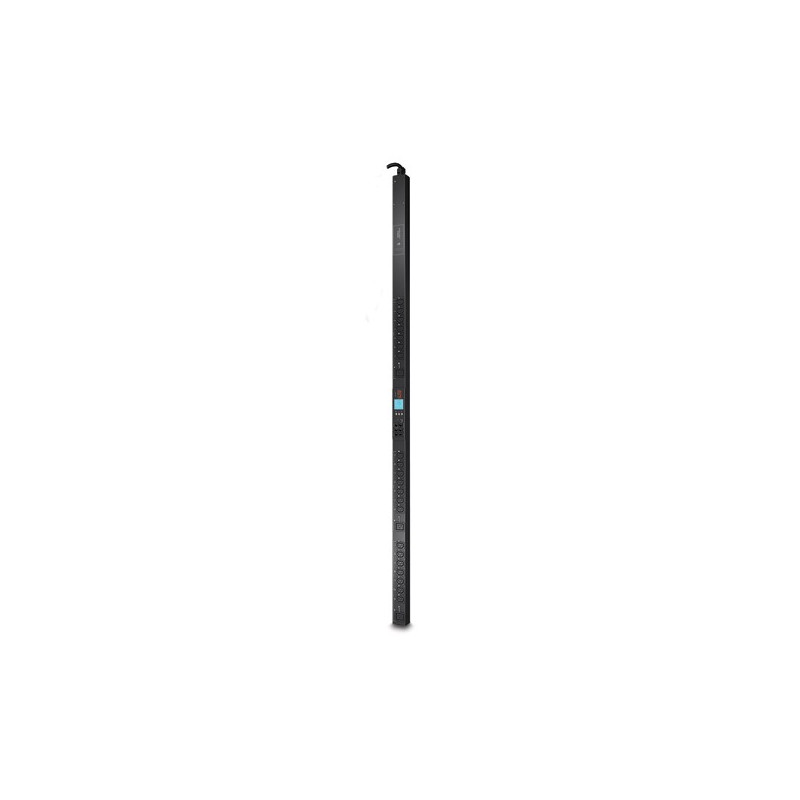

APC Switched Rack PDU AP8961
  • APC Switched Rack PDU AP8961
  • APC Switched Rack PDU AP8961
Network Management

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.



Remote Individual Outlet Control

Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).



Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)



Local Current Monitoring Display

The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)



Power Delays

Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.



Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.



Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)



Integrates with InfraStruXure Central

An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
AC outlets quantity24 AC outlet(s)
Cable length1.83 m
CertificationcUL,FCC Part 15 A,ICES-003,UL,VCCI A
Colour of productBlack
Dimensions (WxDxH)56 x 46 x 1791 mm
Input frequency50/60 Hz
Maximum current20 A
Nominal input voltage208 V
Nominal output voltage208 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Operating temperature range (T-T)-5 - 45 °C
Package dimensions (WxDxH)165 x 114 x 2002 mm
Package weight8820 g
PDU typesSwitched
Power plugNEMA L21-20P
Rack mounting0U
RoHS complianceYes
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-25 - 65 °C
Storage temperature range (T-T)-25 - 65 °C
Weight6910 g

Similar products

  • APC Switched Rack PDU
    APC Switched Rack PDU
  • APC AP8881
    APC AP8881
  • APC PDU 2G
    APC PDU 2G
  • APC AP8981
    APC AP8981
  • APC Switched Rack PDU AP7998
    APC Switched Rack PDU AP7998

APC AP8961

Rack PDU 2G, SWITCHED, ZEROU, 5.7KW, 200/208V, (21) C13 & (3) C19

AP8961

Out of Stock

€2,762.71
€2,246.11 Ex VAT.
