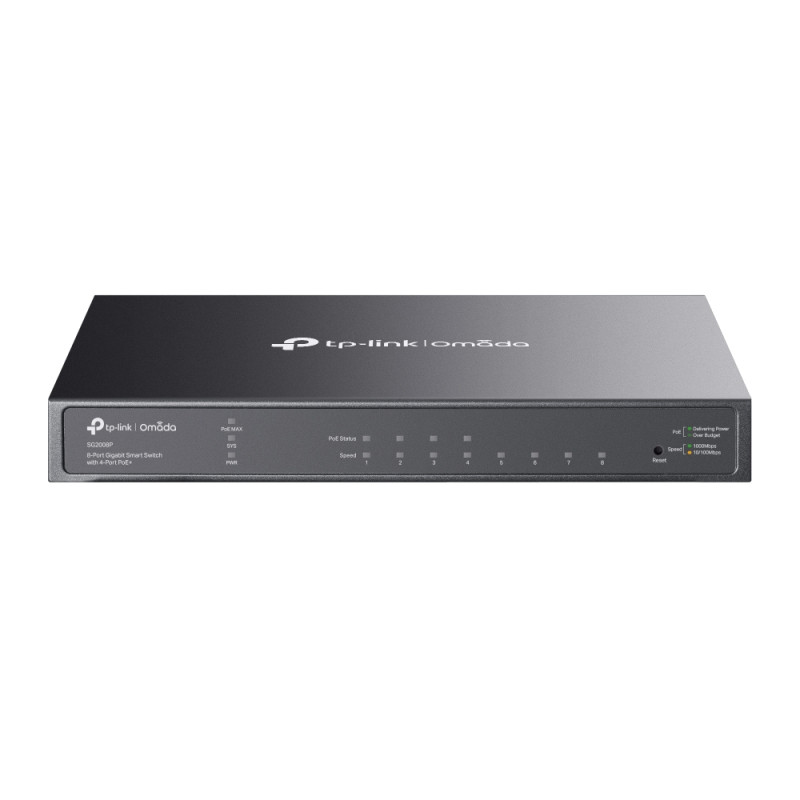

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
  • TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
10G support No
Auto MDI/MDI-X Y
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Certification CE, FCC, RoHS
Depth 126 mm
Flow control support Y
Heat dissipation 263.6 BTU/h
Height 26 mm
LED indicators Y
MAC address filtering Y
MAC address table 8000 entries
Management protocols SNMPv1/v2c/v3
Manual Y
MIB support MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Number of VLANs 4094
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Packet buffer memory 4.1 MB
Power over Ethernet (PoE) Yes
Quality of Service (QoS) support Y
Rack mounting Yes
Security algorithms 802.1x RADIUS
Spanning tree protocol Y
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L2/L2+
Switch type Managed
Switching capacity 16 Gbit/s
Web-based management Y
Width 209 mm
Fanless Y

Specific References

EAN13
6935364072957

Download

sg2008p.pdf

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+ Data Sheet

Download (23.29MB)

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+

8× 10/100/1000 Mbps RJ45 PoE, 16 Gbps, 8K MAC, 9 KB Jumbo, 209 x 126 x 26mm
Out of Stock
127.26€
Tax included
Reference: sg2008p
