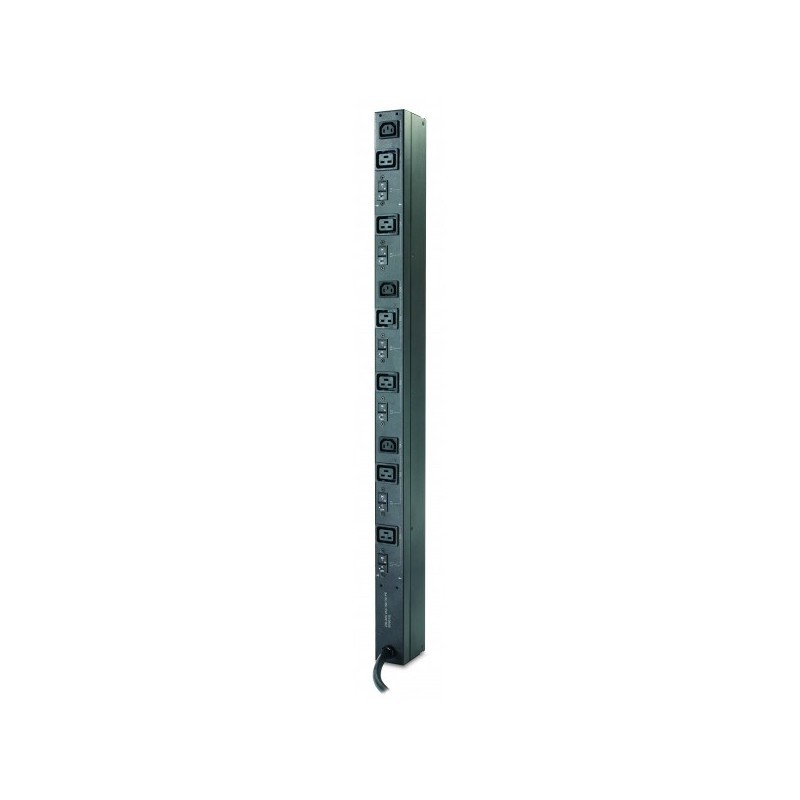

APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 32A 3P+N+PE , Cord Length: 6 feet ( 1.83 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19
Includes: Installation guide, Toolless Mounting Kit.
Includes: Installation guide, Toolless Mounting Kit.
| Cable length | 1.83 m |
| Colour of product | Black |
| Dimensions (WxDxH) | 55 x 88 x 927 mm |
| Input connection type | IEC 309 32A 3P+N+PE |
| Input frequency | 47/63 Hz |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Nominal output voltage | 230 V |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating relative humidity range | 5 - 95 % |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating temperature range (T-T) | -5 - 45 °C |
| Output connections | - (3) IEC 320 C13 - (6) IEC 320 C19 |
| Package dimensions (WxDxH) | 286 x 70 x 1054 mm |
| Package weight | 6250 g |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage relative humidity range | 5 - 95 % |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage temperature range (T-T) | -25 - 65 °C |
| Weight | 4750 g |
Specific References
- EAN13
- 0731304251255
APC Rack PDU Basic Zero U
Rack PDU, Basic, Zero U, 22kW, 400V, (6) C19 & (3) C13
€1,802.21
€1,465.21 Ex. VAT
